  • 1000mm Corrugated Cardboard Exhaust Filter 10 Metres


Corrugated Cardboard Technical Specifications

Sizes

Color

Depth

Efficiency

Dust Holding Capacity

Recommended Air Velocity

Recommended Final Pressure

Initial Pressure Air Velocity

900x10m

White

60mm

98.0%

18-20kg/m2

0.25-1.00m/s

128Pa

12Pa@0.5m/s

30Pa@0.75m/s

1000x10m

55Pa@1.00m/s

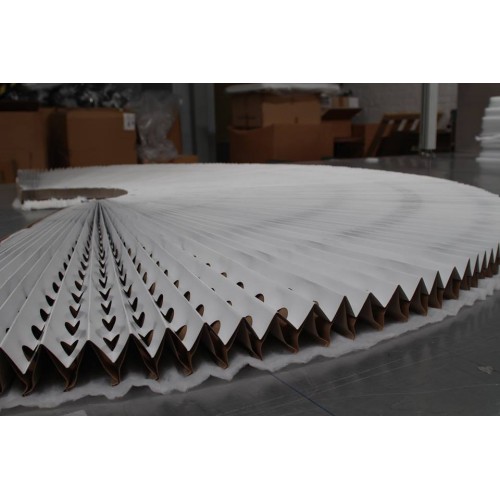

Corrugated Cardboard Filters are designed to capture any wet solids or liquid particles in an air stream:  high solid enamels, baked and air dried enamels, glues, oils, stains, lacquers, fiberglass, epoxies, asphalts, clear coats, etc. The v-shaped front wall prevents overspray bounce back and particle migration. The deeper v-shape back wall captures overspray and deposits it outside of the airflow. The filter exhaust holes are positioned to maintain constant airflow during the loading phase. Static pressure increases slowly with the accumulation of overspray resulting in uniform airflow.

Write a review

Note: HTML is not translated!
    Bad           Good

1000mm Corrugated Cardboard Exhaust Filter 10 Metres

  • Product Code: 1000mm Corrugated Cardboard Exhaust Filter 10 Metres
  • Reward Points: 300
  • Availability: In Stock
  • $140.00

  • Ex Tax: $140.00
  • Price in reward points: 400

Available Options
